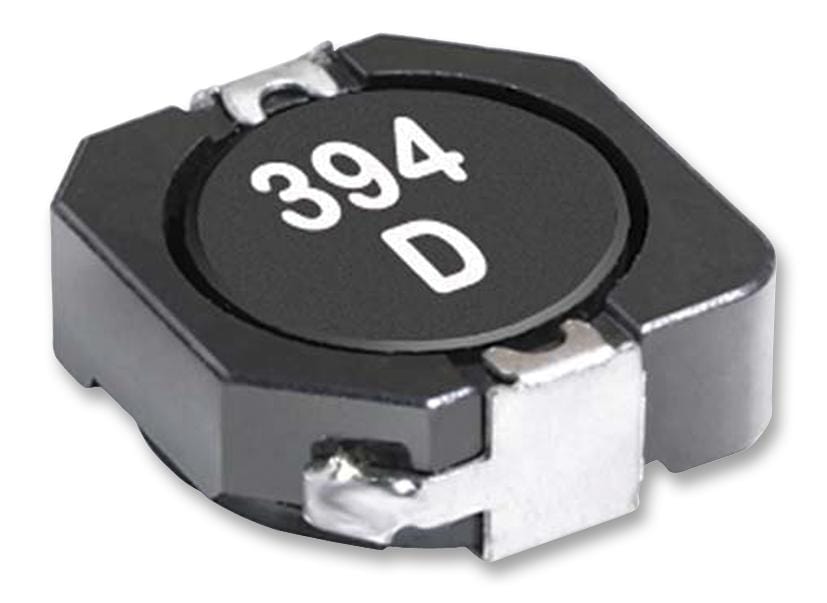

COILCRAFT - MSS1038T-184KLC - Power Inductor (SMD), 180 µH, 980 mA, Shielded, 890 mA, MSS1038T, 10.2mm x 10mm x 3.8mm
- Inductance: 180µH
- RMS Current (Irms): 980mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 890mA
- Product Range: MSS1038T Series
- Power Inductor Case: 10.2mm x 10mm x 3.8mm
- DC Resistance Max: 0.582ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 5MHz
