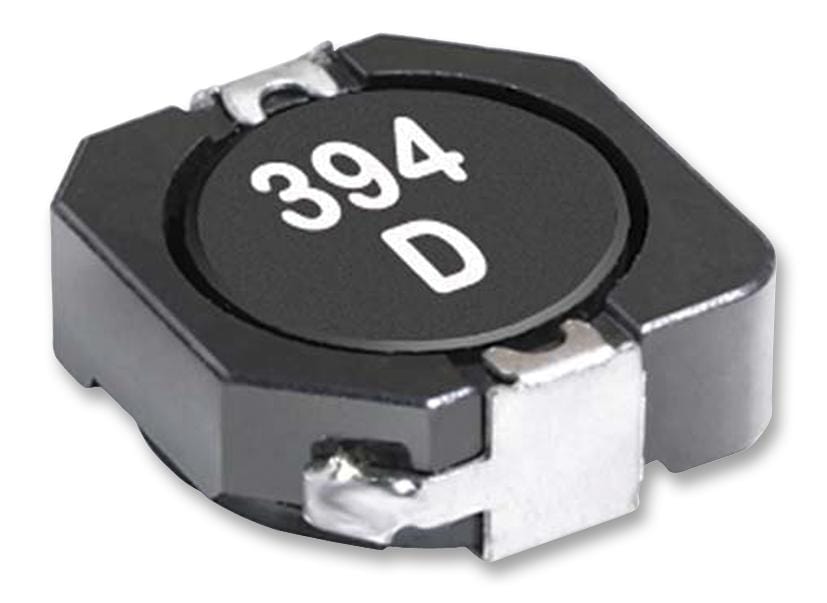

COILCRAFT - MSS1038T-334KLC - Power Inductor (SMD), 330 µH, 690 mA, Shielded, 590 mA, MSS1038T, 10.2mm x 10mm x 3.8mm
- Inductance: 330µH
- RMS Current (Irms): 690mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 590mA
- Product Range: MSS1038T Series
- Power Inductor Case: 10.2mm x 10mm x 3.8mm
- DC Resistance Max: 1.09ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 4MHz
