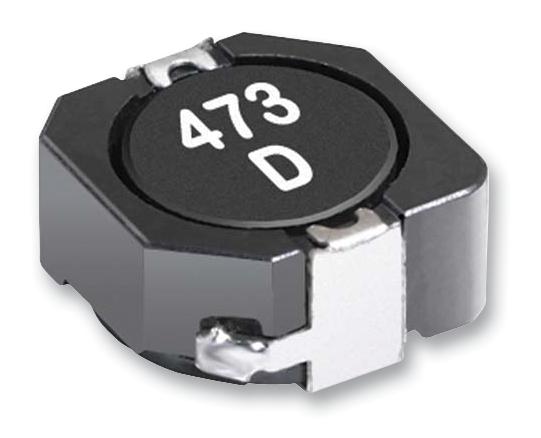

COILCRAFT - MSS1048-473MLC - Power Inductor (SMD), 47 µH, 2.42 A, Shielded, 1.44 A, MSS1048, 10.2mm x 10mm x 4.8mm
- Inductance: 47µH
- RMS Current (Irms): 2.42A
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.44A
- Product Range: MSS1048 Series
- Power Inductor Case: 10.2mm x 10mm x 4.8mm
- DC Resistance Max: 0.12ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Reel Quantity: 200
- Self Resonant Frequency Min: 10MHz
