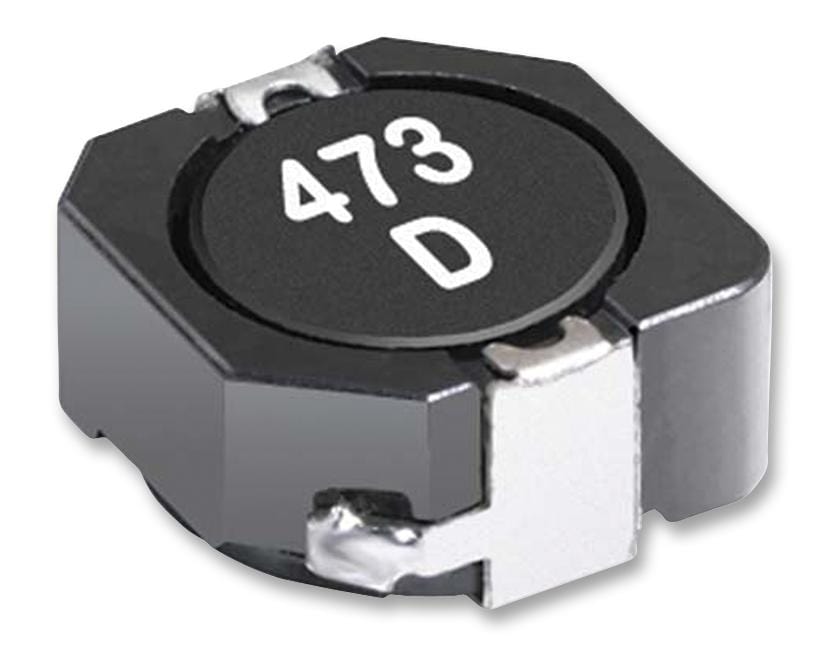

COILCRAFT - MSS1048T-472NLC - Power Inductor (SMD), 4.7 µH, 6.9 A, Shielded, 4.36 A, MSS1048T, 10.2mm x 10mm x 4.8mm
- Inductance: 4.7µH
- RMS Current (Irms): 6.9A
- Inductor Construction: Shielded
- Saturation Current (Isat): 4.36A
- Product Range: MSS1048T Series
- Power Inductor Case: 10.2mm x 10mm x 4.8mm
- DC Resistance Max: 0.0115ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 38MHz
