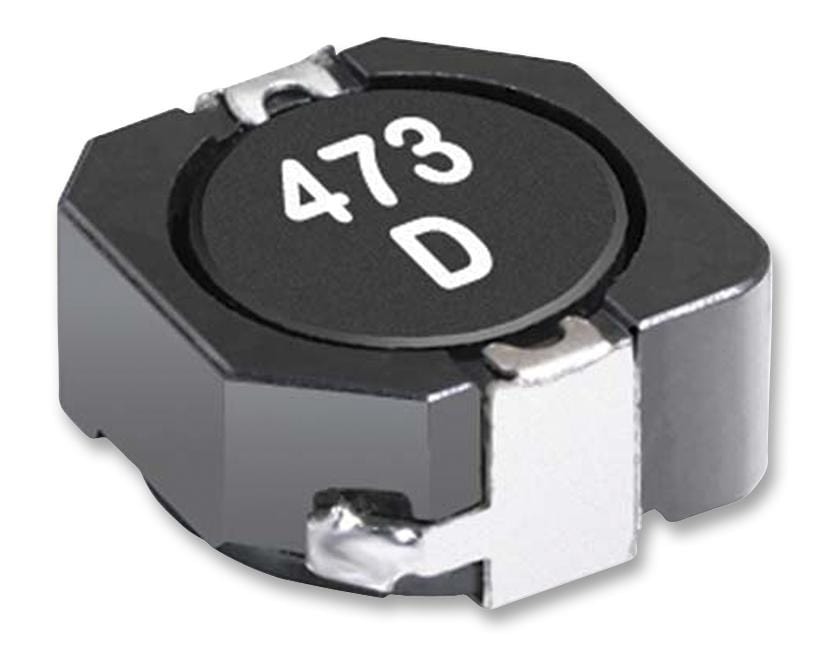

COILCRAFT - MSS1048T-474KLC - Power Inductor (SMD), 470 µH, 720 mA, Shielded, 430 mA, MSS1048T, 10.2mm x 10mm x 4.8mm
- Inductance: 470µH
- RMS Current (Irms): 720mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 430mA
- Product Range: MSS1048T Series
- Power Inductor Case: 10.2mm x 10mm x 4.8mm
- DC Resistance Max: 0.886ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 2.7MHz
