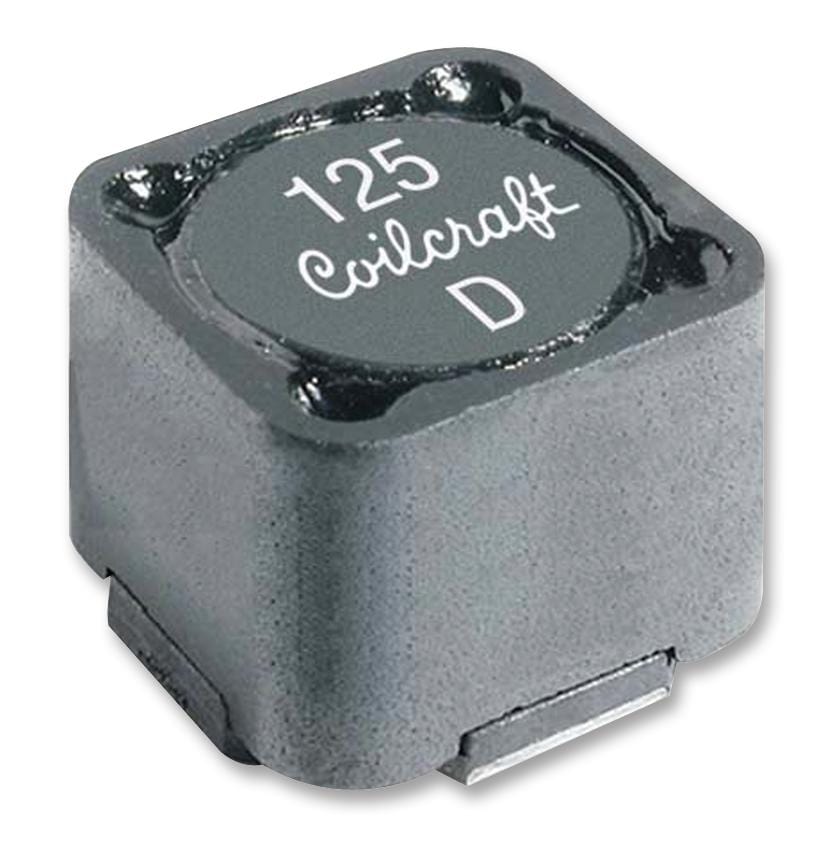

COILCRAFT - MSS1210-825KED - Power Inductor (SMD), 8.2 mH, 350 mA, Shielded, 350 mA, MSS1210, 12.3mm x 12.3mm x 10mm
- Inductance: 8.2mH
- RMS Current (Irms): 350mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 350mA
- Product Range: MSS1210 Series
- Power Inductor Case: 12.3mm x 12.3mm x 10mm
- DC Resistance Max: 7.05ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 380kHz
