description

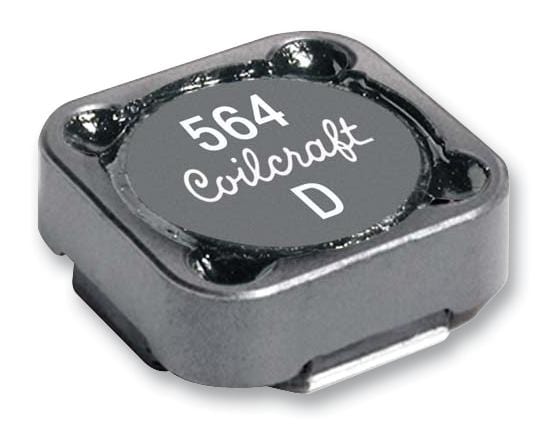

COILCRAFT - MSS1246-683MLC - Power Inductor (SMD), 68 µH, 1.8 A, Shielded, 2.1 A, MSS1246, 12mm x 12mm x 4.6mm
- Inductance: 68µH
- RMS Current (Irms): 1.8A
- Inductor Construction: Shielded
- Saturation Current (Isat): 2.1A
- Product Range: MSS1246 Series
- Power Inductor Case: 12mm x 12mm x 4.6mm
- DC Resistance Max: 0.1859ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 9.7MHz
