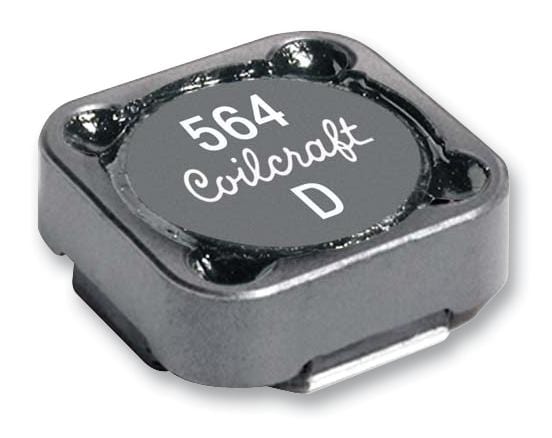

COILCRAFT - MSS1246-684KLC - Power Inductor (SMD), 680 µH, 620 mA, Shielded, 680 mA, MSS1246, 12mm x 12mm x 4.6mm
- Inductance: 680µH
- RMS Current (Irms): 620mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 680mA
- Product Range: MSS1246 Series
- Power Inductor Case: 12mm x 12mm x 4.6mm
- DC Resistance Max: 1.523ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 2.8MHz
