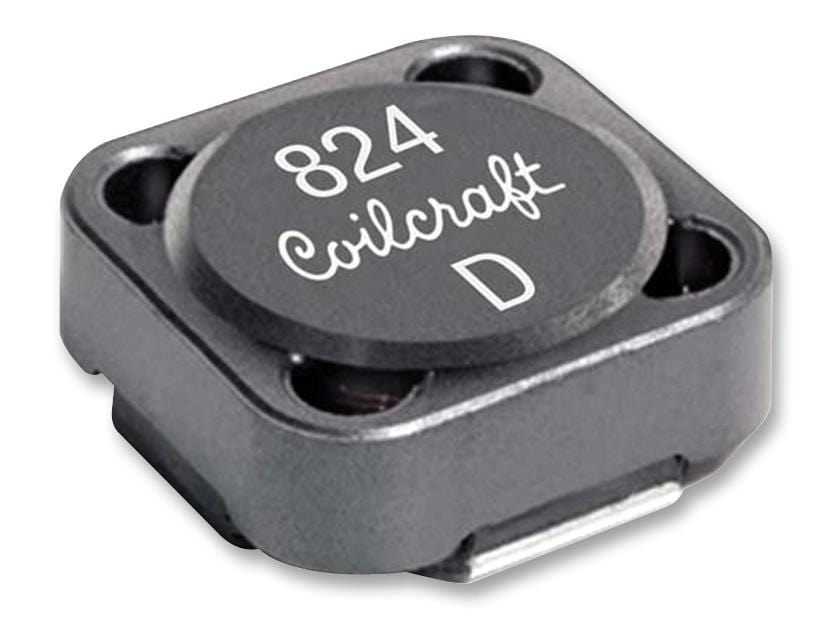

COILCRAFT - MSS1246T-104MLC - Power Inductor (SMD), 100 µH, 1.65 A, Shielded, 1.84 A, MSS1246T, 12mm x 12mm x 4.6mm
- Inductance: 100µH
- RMS Current (Irms): 1.65A
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.84A
- Product Range: MSS1246T Series
- Power Inductor Case: 12mm x 12mm x 4.6mm
- DC Resistance Max: 0.2409ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 8MHz
