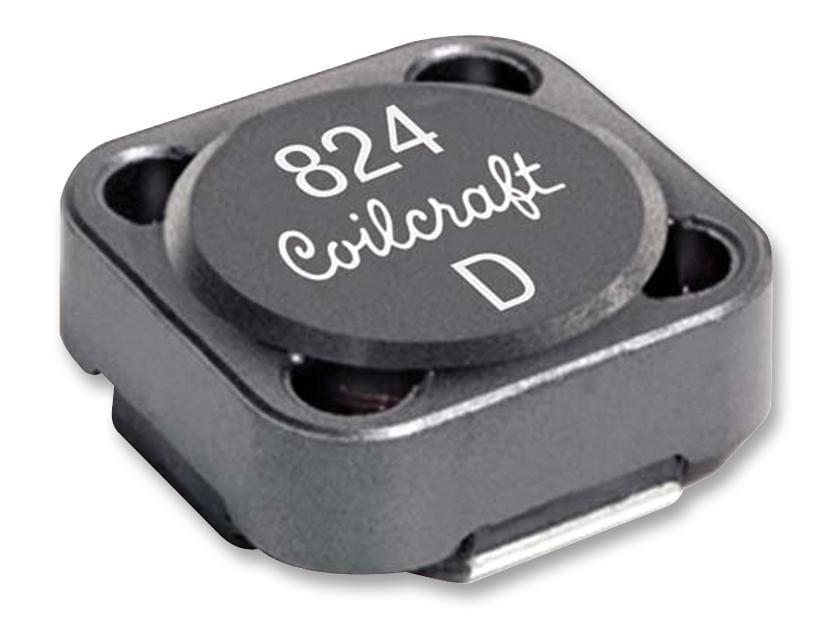

COILCRAFT - MSS1246T-274KLC - Power Inductor (SMD), 270 µH, 950 mA, Shielded, 1.12 A, MSS1246T, 12mm x 12mm x 4.6mm
- Inductance: 270µH
- RMS Current (Irms): 950mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.12A
- Product Range: MSS1246T Series
- Power Inductor Case: 12mm x 12mm x 4.6mm
- DC Resistance Max: 0.6224ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 4.7MHz
