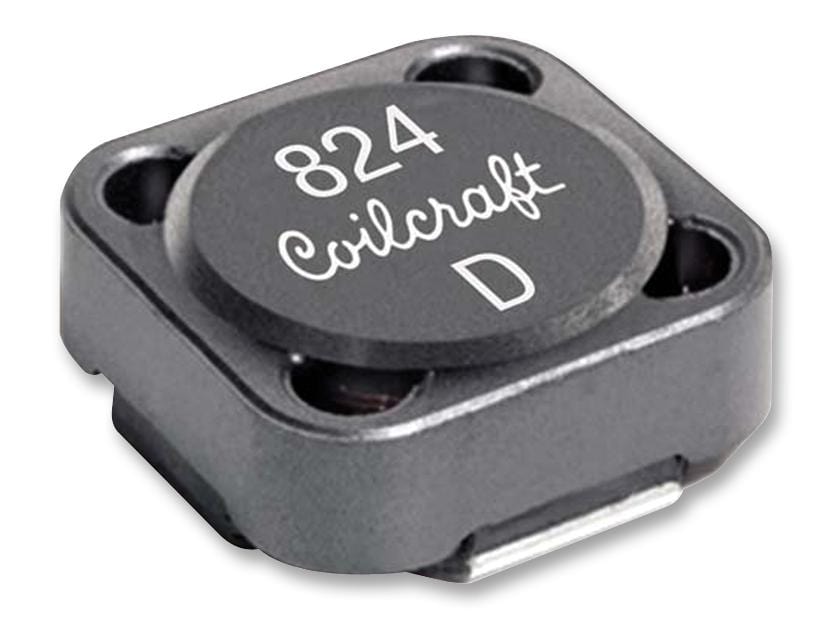

COILCRAFT - MSS1246T-474KLC - Power Inductor (SMD), 470 µH, 760 mA, Shielded, 864 mA, MSS1246T
- Inductance: 470µH
- RMS Current (Irms): 760mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 864mA
- Product Range: MSS1246T Series
- Power Inductor Case: 12mm x 12mm x 4.6mm
- DC Resistance Max: 1.039ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 3.5MHz
