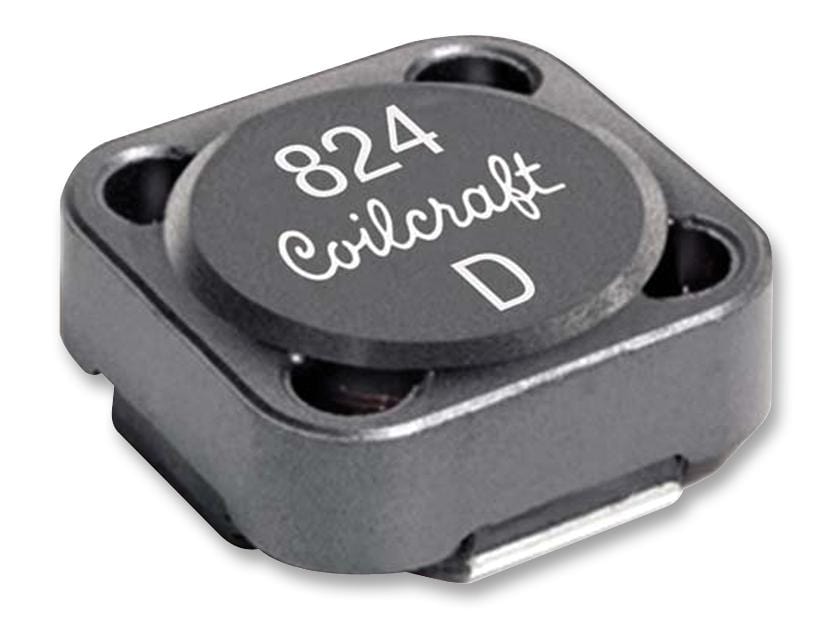

COILCRAFT - MSS1246T-682MLC - Power Inductor (SMD), 6.8 µH, 5.2 A, Shielded, 7.38 A, MSS1246T, 12mm x 12mm x 4.6mm
- Inductance: 6.8µH
- RMS Current (Irms): 5.2A
- Inductor Construction: Shielded
- Saturation Current (Isat): 7.38A
- Product Range: MSS1246T Series
- Power Inductor Case: 12mm x 12mm x 4.6mm
- DC Resistance Max: 0.0277ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 33MHz
