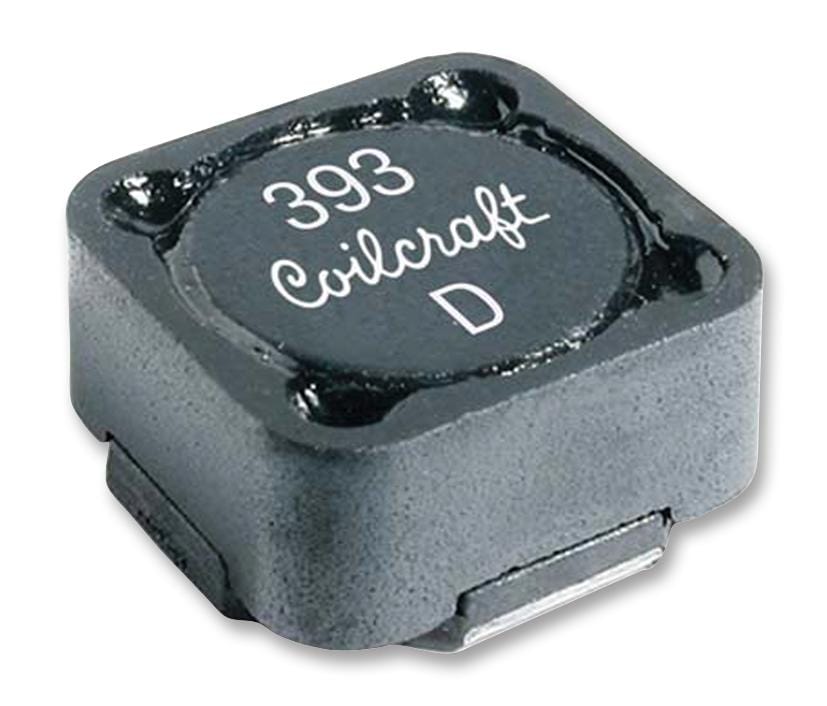

COILCRAFT - MSS1260T-152NLD - Power Inductor (SMD), 1.5 µH, 7.6 A, Shielded, 14.44 A, MSS1260T, 12.3mm x 12.3mm x 6mm
- Inductance: 1.5µH
- RMS Current (Irms): 7.6A
- Inductor Construction: Shielded
- Saturation Current (Isat): 14.44A
- Product Range: MSS1260T Series
- Power Inductor Case: 12.3mm x 12.3mm x 6mm
- DC Resistance Max: 0.0098ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 80MHz
