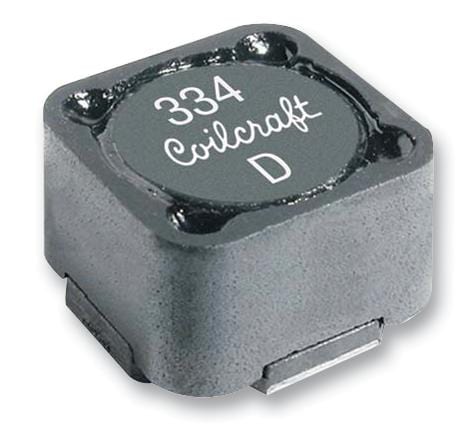

COILCRAFT - MSS1278-142MLD - Power Inductor (SMD), 1.4 µH, 10 A, Shielded, 25.2 A, MSS1278, 12.3mm x 12.3mm x 8.05mm
- Inductance: 1.4µH
- RMS Current (Irms): 10A
- Inductor Construction: Shielded
- Saturation Current (Isat): 25.2A
- Product Range: MSS1278 Series
- Power Inductor Case: 12.3mm x 12.3mm x 8.05mm
- DC Resistance Max: 0.0098ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 80MHz
