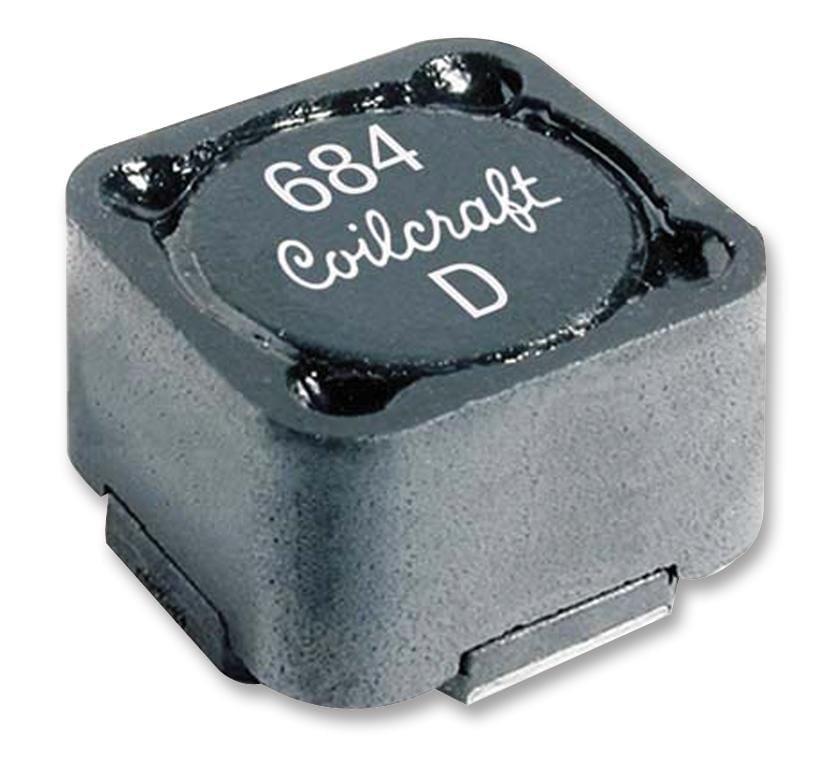

COILCRAFT - MSS1278T-472MLD - Power Inductor (SMD), 4.7 µH, 6.2 A, Shielded, 15.3 A, MSS1278T, 12mm x 12mm x 7.8mm
- Inductance: 4.7µH
- RMS Current (Irms): 6.2A
- Inductor Construction: Shielded
- Saturation Current (Isat): 15.3A
- Product Range: MSS1278T Series
- Power Inductor Case: 12mm x 12mm x 7.8mm
- DC Resistance Max: 0.0155ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Reel Quantity: 500
- Self Resonant Frequency Min: 33MHz
