MSS1P5-m3/89A Diode, Schottky Rectifier, 1A, 50V Vishay

VISHAYUGS :MSS1P5-M3/89A Code de commande:1570034

Prix:
Prix ​​promotionnel€0,58

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (9050 unité)

Documents et téléchargements

description

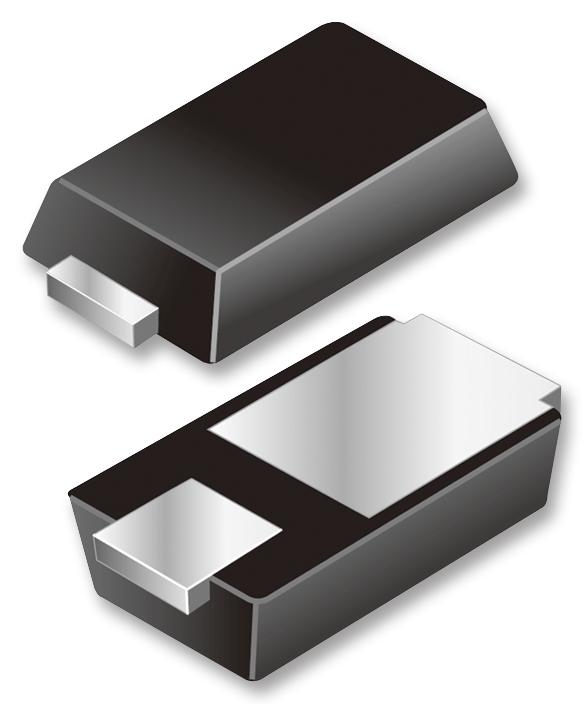

VISHAY - MSS1P5-M3/89A - Schottky Rectifier, 50 V, 1 A, Single, MicroSMP, 2 Pins, 600 mV

  • Repetitive Reverse Voltage Vrrm Max: 50V
  • Forward Current If(AV): 1A
  • Diode Configuration: Single
  • Diode Case Style: MicroSMP
  • No. of Pins: 2Pins
  • Forward Voltage VF Max: 600mV
  • Forward Surge Current Ifsm Max: 25A
  • Operating Temperature Max: 150°C
  • Product Range: MSS1P Series
  • Automotive Qualification Standard: -
  • SVHC: Lead (15-Jan-2019)
  • Current Ifsm: 25A
  • Diode Type: Schottky
  • External Depth: 0.75mm
  • External Length / Height: 2.3mm
  • External Width: 1.4mm
  • Junction Temperature Tj Max: 150°C
  • Junction Temperature Tj Min: -55°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Semiconductor Technology: Si
  • Termination Type: Surface Mount Device
