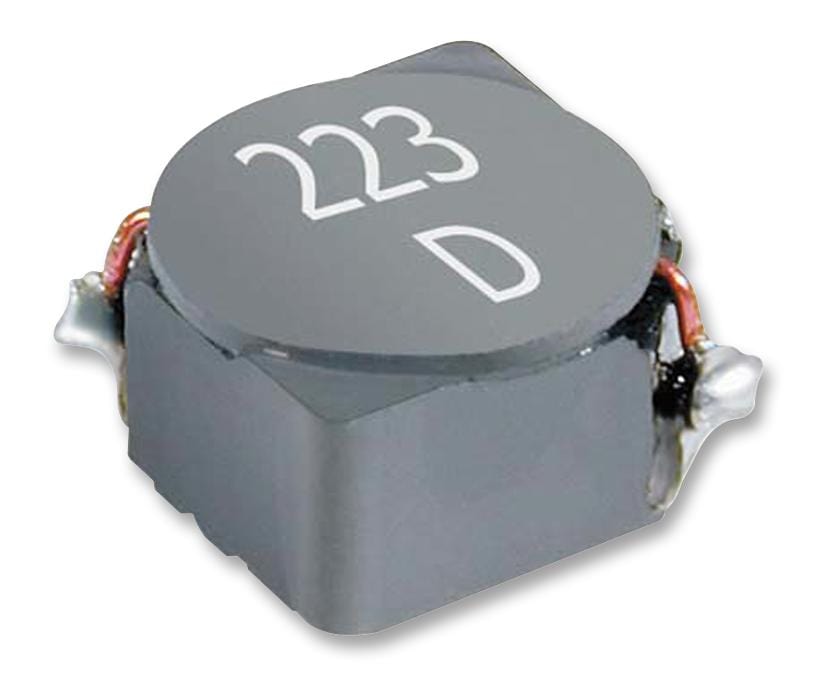

COILCRAFT - MSS7341-224MLD - Power Inductor (SMD), 220 µH, 780 mA, Shielded, 350 mA, MSS7341, 7.3mm x 7.3mm x 4.1mm
- Inductance: 220µH
- RMS Current (Irms): 780mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 350mA
- Product Range: MSS7341 Series
- Power Inductor Case: 7.3mm x 7.3mm x 4.1mm
- DC Resistance Max: 0.71ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 5MHz
