MTL5541 Isolated Barrier, PSU MTL Surge Technologies

MTL SURGE TECHNOLOGIESUGS :MTL5541 Code de commande:1749529

Prix:
Prix ​​promotionnel€531,96

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (27 unité)

Documents et téléchargements

description

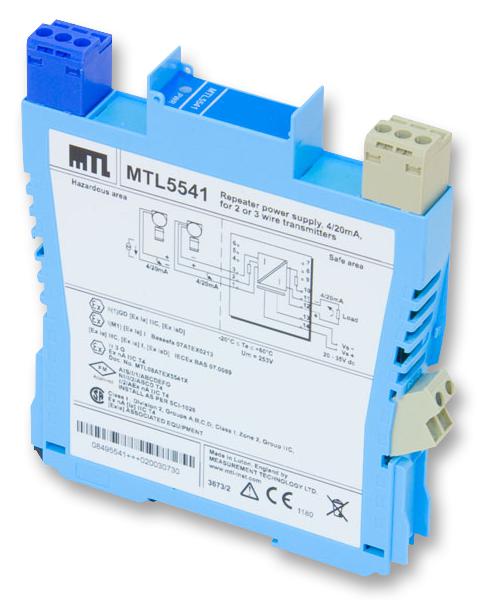

MTL SURGE TECHNOLOGIES - MTL5541 - AC/DC DIN Rail Power Supply (PSU), 1 Output, 651 mW, 28 VDC

  • No. of Outputs: 1 Output
  • Output Power Max: 651mW
  • Output Voltage - Output 1: 28VDC
  • Output Current - Output 1: -
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Input Voltage VAC: -
  • Power Supply Output Type: Fixed
  • Product Range: -
  • SVHC: No SVHC (17-Dec-2015)
  • Approval Bodies: ATEX
  • Current Consumption @ 24V: 51mA
  • External Depth: 123.6mm
  • External Length / Height: 109.8mm
  • External Width: 15.8mm
  • Isolation Voltage: 250Vrms
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -20°C
  • Power Consumption: 0.7W
  • Power Supply Type: Repeater
  • Supply Voltage DC Max: 35V
  • Supply Voltage DC Min: 20V
