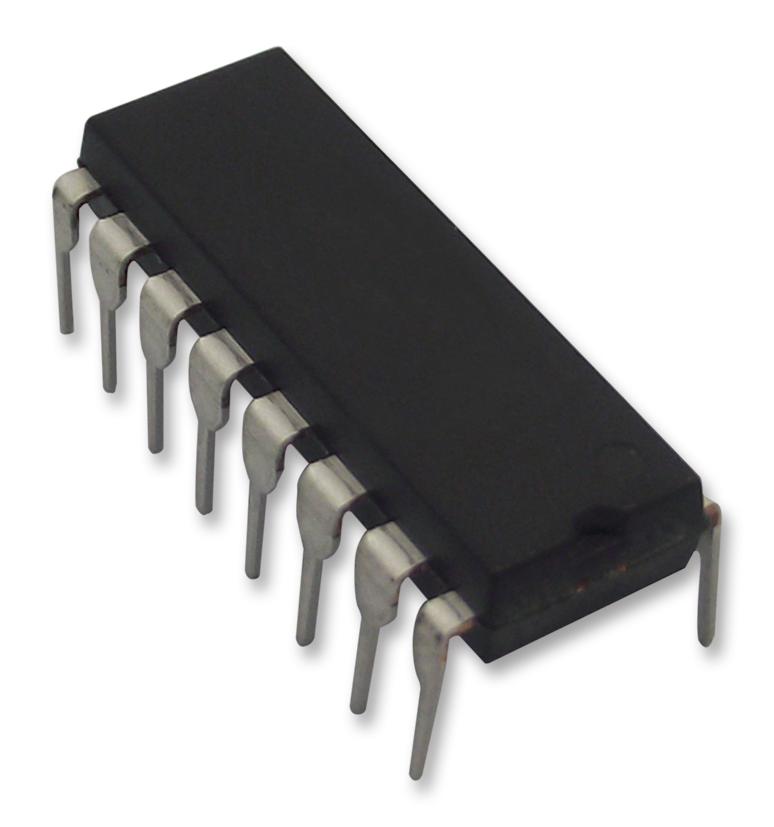

MAXIM INTEGRATED / ANALOG DEVICES - MX7543JN+ - Digital to Analogue Converter, 12 bit, Serial, 4.75V to 5.25V, DIP, 16 Pins
- Resolution (Bits): 12bit
- Sampling Rate: -
- Data Interface: Serial
- Supply Voltage Range: 4.75V to 5.25V
- ADC / DAC Case Style: DIP
- No. of Pins: 16Pins
- Input Channel Type: Serial
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- A/D / D/A Features: CMOS, Double-Buffered, Latches, Microprocessor Compatible, Multiplying, Serial I/P
- Base Number: 7543
- Conversion Time: 1µs
- IC Temperature Range: Commercial
- Linearity Error: 0.5%
- Linearity Error ADC / DAC +: 1LSB
- Linearity Error ADC / DAC -: 1LSB
- Logic Function Number: 7543
- No. of Bits: 12bit
- No. of Channels: 1Channels
- Operating Temperature Range: 0°C to +70°C
- Output Type: Current
- Power Dissipation Ptot Max: 12.5mW
- Settling Time: 1µs
- Supply Current: 2.5mA
- Supply Voltage Max: 5.25V
- Supply Voltage Min: 4.75V
- Termination Type: Through Hole
