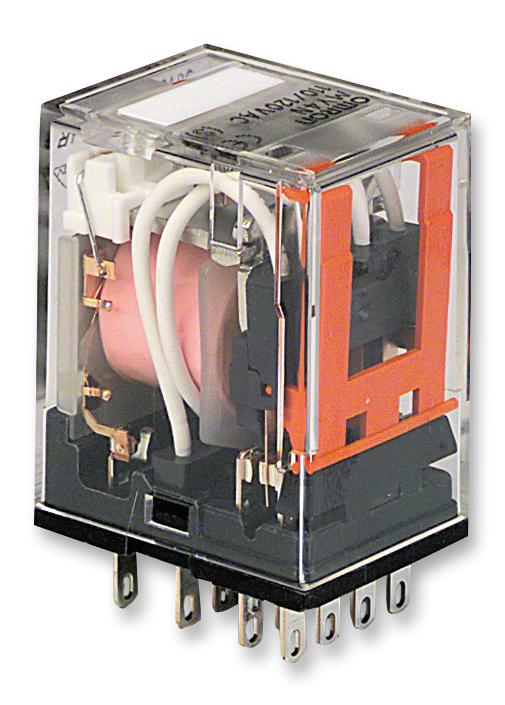

OMRON - MY4 6VDC (S) - Power Relay, 4PDT, 6 VDC, 5 A, Socket, DC
- Contact Configuration: 4PDT
- Coil Voltage: 6VDC
- Contact Current: 5A
- Product Range: -
- Relay Mounting: Socket
- Coil Type: DC
- Contact Voltage VAC: 250VAC
- Contact Voltage VDC: 125VDC
- Coil Resistance: 39.8ohm
- AC Coil Power: 1.2VA
- Approval Bodies: CSA, UL, VDE
- Approvals & Standards: CSA, UL
- Coil Current: 151mA
- Coil Operating Lower Percent Limit: 80%
- Coil Operating Upper Percent Limit: 110%
- Coil Voltage VAC Nom: 240V
- Coil Voltage VDC Nom: 6V
- Contact Current AC Max: 5A
- Contact Current DC Max: 5A
- Contact Current Max: 5A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 0.9W
- External Depth: 36mm
- External Height: 28mm
- External Length / Height: 28mm
- External Width: 21.5mm
- Nom Operating Power: 900mW
- Operating Temperature Max: 70°C
- Operating Temperature Min: -55°C
- Operating Time: 20ms
- Relay Type: General Purpose
- Release Time: 20ms
