N2520-5002RB Header, Right Angle, 20WAY 3M

3MUGS :N2520-5002RB Code de commande:9838384

Prix:
Prix ​​promotionnel€5,33

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (437 unité)

Documents et téléchargements

description

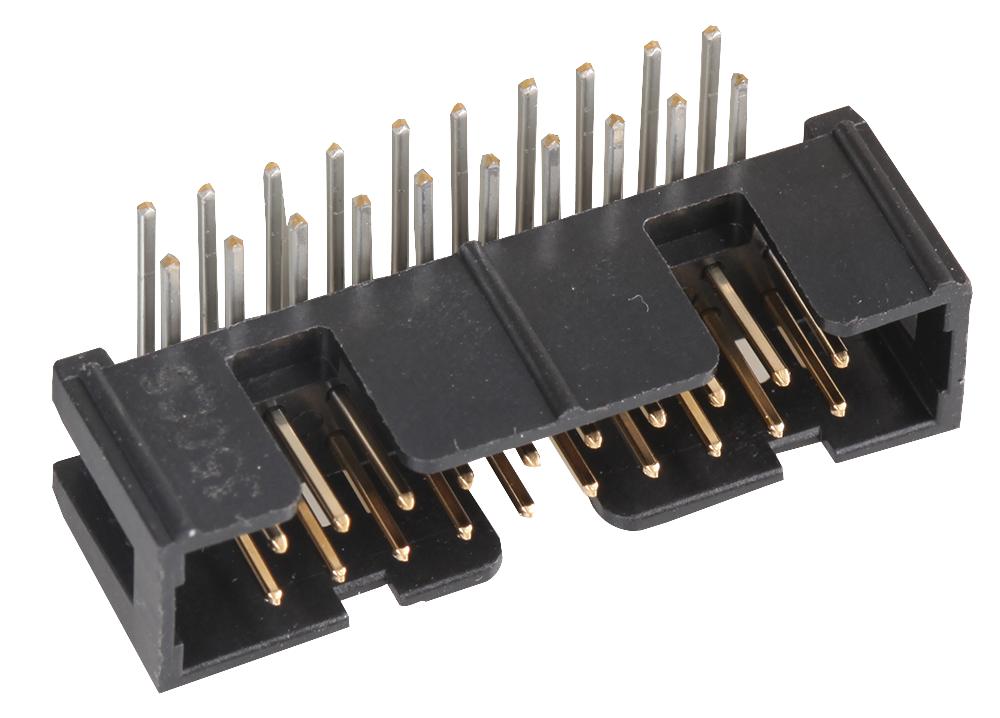

3M - N2520-5002RB - Pin Header, Right Angle, Wire-to-Board, 2.54 mm, 2 Rows, 20 Contacts, Through Hole Right Angle

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 20Contacts
  • Gender: Header
  • Product Range: 2500 Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (15-Jan-2018)
  • Colour: Black
  • Contact Resistance: 20mohm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • No. of Mating Cycles: 200
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • PCB Hole Diameter: 0.89mm
