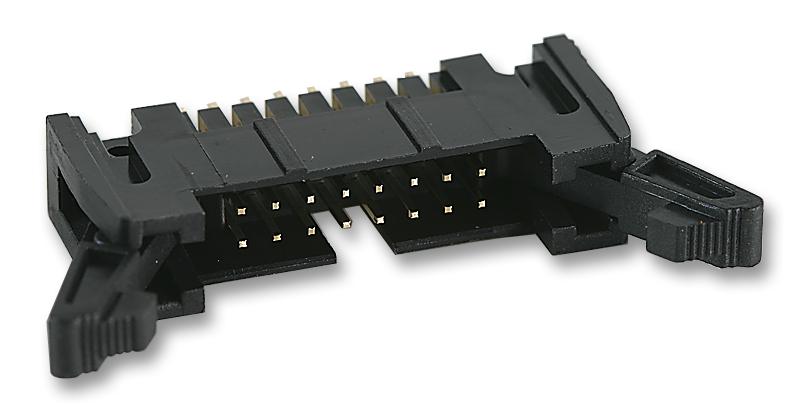

3M - N3764-6302RB - Pin Header, Long Latch, Wire-to-Board, 2.54 mm, 2 Rows, 64 Contacts, Through Hole Straight, 3000
- Pitch Spacing: 2.54mm
- No. of Contacts: 64Contacts
- Gender: Header
- Product Range: 3000 Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper
- Colour: Black
- Contact Resistance: 20mohm
- Current Rating: 1A
- Current Temperature: 70°C
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- No. of Mating Cycles: 200
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- PCB Hole Diameter: 0.89mm
- Voltage Rating VAC: 350V
- Working Voltage: 350V
