NC5MD-LX-B Plug, xlr, Black, 5POLE Neutrik

NEUTRIKUGS :NC5MD-LX-B Code de commande:1390139

Prix:
Prix ​​promotionnel€32,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (150 unité)

Documents et téléchargements

description

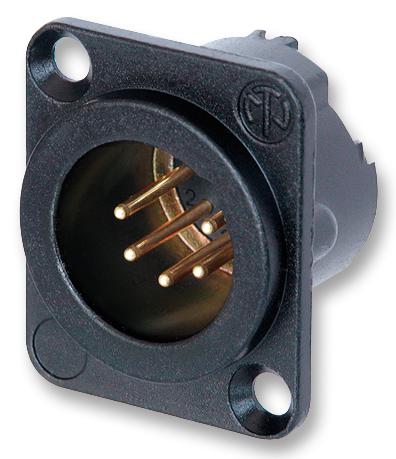

NEUTRIK - NC5MD-LX-B - XLR Connector, 5 Contacts, Plug, Panel Mount, Gold Plated Contacts, Metal Body, DLX

  • No. of Contacts: 5Contacts
  • Gender: Plug
  • Connector Mounting: Panel Mount
  • Contact Plating: Gold Plated Contacts
  • Connector Body Material: Metal Body
  • Product Range: DLX Series
  • SVHC: No SVHC (27-Jun-2018)
  • Body Plating: Black Chrome
  • Colour: Black
  • Connector Colour: Black
  • Contact Termination: Solder
  • Current Rating: 7.5A
  • Flammability Rating: UL94HB
  • Insulation Resistance: 1Gohm
  • Material: Zinc Die-cast
  • No. of Mating Cycles: 1000
  • Operating Temperature Max: +80°C
  • Operating Temperature Min: -30°C
  • Standard: IEC 61076-2-103
  • Termination Method: Solder
  • Wire Area Size Max: 1mm²
  • Wire Size AWG Max: 18AWG
