NC5MRX Plug, xlr, 90Deg, 5POLE Neutrik

NEUTRIKUGS :NC5MRX Code de commande:1309983

Prix:
Prix ​​promotionnel€24,51

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (30 unité)

Documents et téléchargements

description

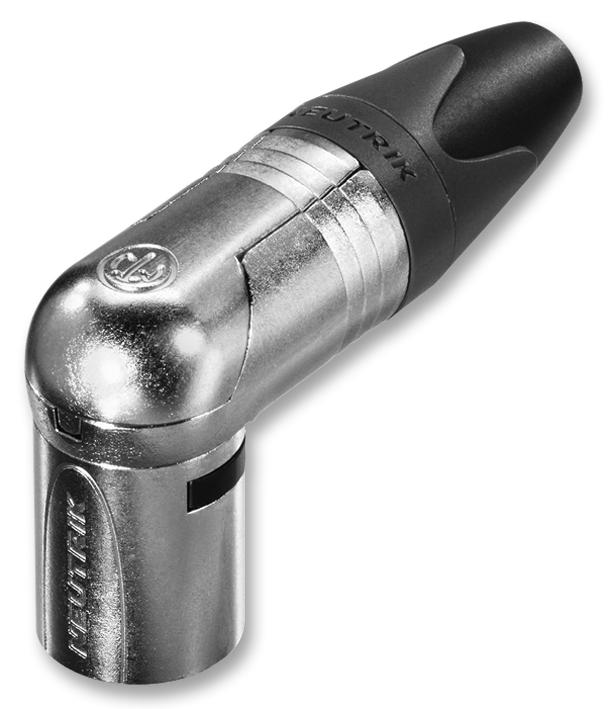

NEUTRIK - NC5MRX - XLR Connector, Right Angle, 5 Contacts, Plug, Cable Mount, Silver Plated Contacts, Metal Body, RX

  • No. of Contacts: 5Contacts
  • Gender: Plug
  • Connector Mounting: Cable Mount
  • Contact Plating: Silver Plated Contacts
  • Connector Body Material: Metal Body
  • Product Range: RX Series
  • SVHC: No SVHC (27-Jun-2018)
  • Cable Diameter Max: 8mm
  • Cable Diameter Min: 3.5mm
  • Colour: Nickel
  • Connector Colour: Natural
  • Contact Resistance: 3mohm
  • Contact Termination: Solder
  • Current Rating: 7.5A
  • External Depth: 69.3mm
  • Flammability Rating: UL94HB
  • Insertion Force: 20N
  • Insulation Resistance: 2Gohm
  • Material: Nickel
  • Mechanical Life: 1000 cycles
  • No. of Mating Cycles: 1000
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -30°C
  • Termination Method: Solder
  • Voltage Rating VAC: 50V
  • Wire Area Size Max: 1mm²
  • Wire Size AWG Max: 18AWG
  • XLR Capacitance: 7pF
