description

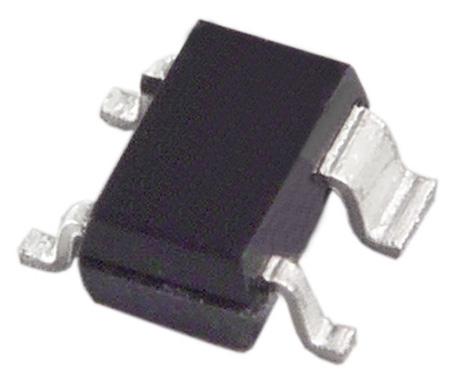

ONSEMI - NCP553SQ30T1G - Fixed LDO Voltage Regulator, 12V in, 680mV Dropout, 3V/80mA out, SC-70-4
- Output Type: Fixed
- Input Voltage Min: -
- Input Voltage Max: 12V
- Fixed Output Voltage Nom.: 3V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 80mA
- Dropout Voltage Vdo: 680mV
- LDO Regulator Case Style: SC-70
- No. of Pins: 4Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: 3V 80mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Output Voltage Nom.: 3V
