NCV4266ST50T3G LDO, 5V, 150mA ONSEMI

ONSEMIUGS :NCV4266ST50T3G Code de commande:1924887

Prix:
Prix ​​promotionnel€3,92

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2848 unité)

Documents et téléchargements

description

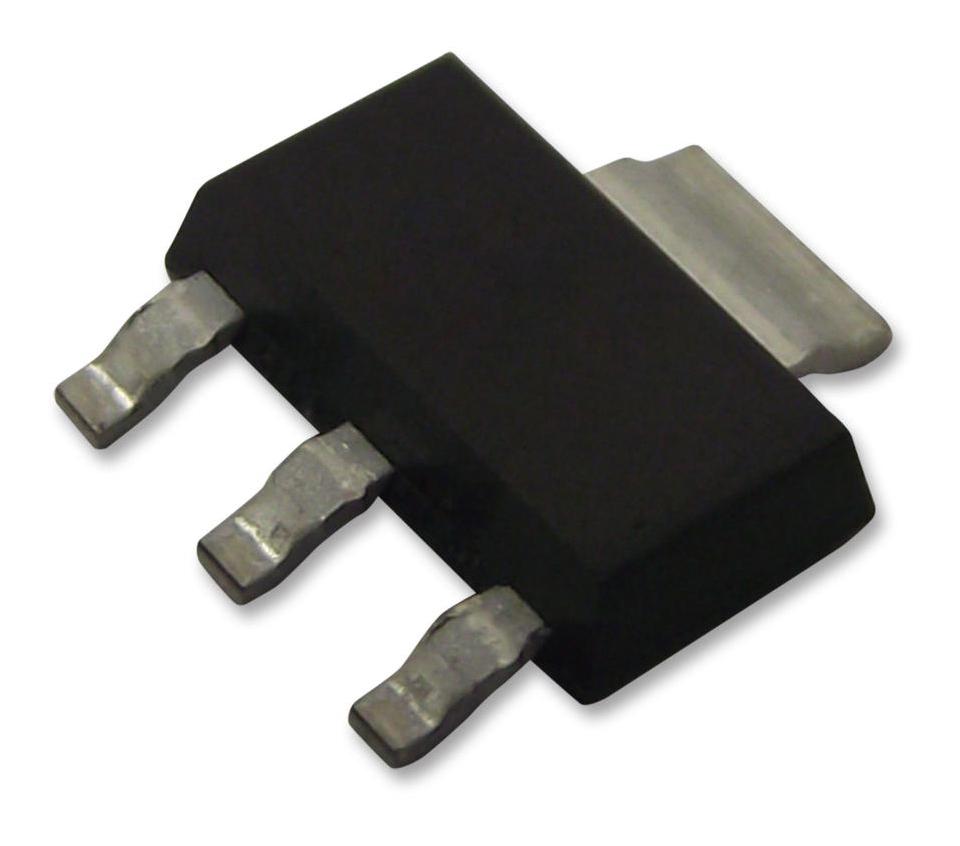

ONSEMI - NCV4266ST50T3G - Fixed LDO Voltage Regulator, 5.5V to 40V, 250mV Dropout, 5Vout, 150mAout, SOT-223-3

  • Output Type: Fixed
  • Input Voltage Min: 5.5V
  • Input Voltage Max: 40V
  • Fixed Output Voltage Nom.: 5V
  • Adjustable Output Voltage Min: -
  • Adjustable Output Voltage Max: -
  • Output Current: 150mA
  • Dropout Voltage Vdo: 250mV
  • LDO Regulator Case Style: SOT-223
  • No. of Pins: 3Pins
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 150°C
  • Product Range: 5V 150mA LDO Voltage Regulators
  • Automotive Qualification Standard: AEC-Q100
  • RoHS Phthalates Compliant: Yes
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (27-Jun-2018)
  • Base Number: 4266
  • Operating Temperature Range: -40°C to +150°C
  • Output Voltage Nom.: 5V
  • Primary Input Voltage: 28V
