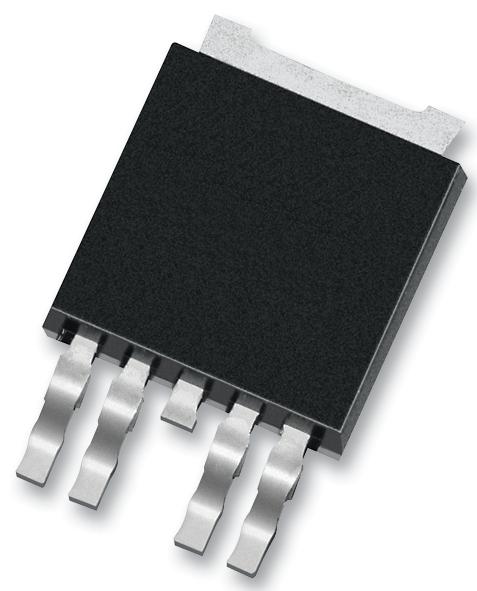

ONSEMI - NCV4276BDT33RKG - LDO Voltage Regulator, AEC-Q100, Fixed, 4.5 V to 40 V in, 250 mV drop, 3.3 V/400 mA out, TO-252-5
- Output Type: Fixed
- Input Voltage Min: 4.5V
- Input Voltage Max: 40V
- Fixed Output Voltage Nom.: 3.3V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 400mA
- Dropout Voltage Vdo: 250mV
- LDO Regulator Case Style: TO-252
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 150°C
- Product Range: 3.3V 400mA LDO Voltage Regulators
- Automotive Qualification Standard: AEC-Q100
- MSL: MSL 1 - Unlimited
- SVHC: Lead (27-Jun-2018)
