ND03K00152K-- Thermistor, NTC, 1.5K, 3.5mm KYOCERA Avx

KYOCERA AVXUGS :ND03K00152K-- Code de commande:1672363

Prix:
Prix ​​promotionnel€1,06

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1950 unité)

Documents et téléchargements

description

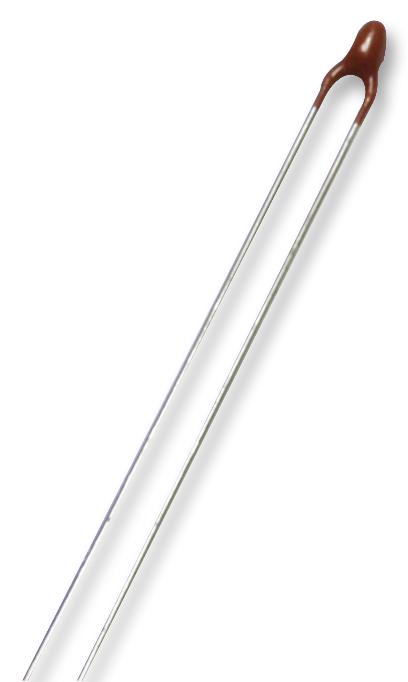

KYOCERA AVX - ND03K00152K-- - Thermistor, NTC, 1.5 kohm, ND03 Series, 3630 K, Through Hole, Radial Leaded

  • Zero Power Resistance at 25°C: 1.5kohm
  • Product Range: ND03 Series
  • Thermistor Mounting: Through Hole
  • Beta Value (K): 3630K
  • Thermistor Case Style: -
  • Thermistor Terminals: Radial Leaded
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 150°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Bandwidth: 3MHz
  • Body Diameter: 3.5mm
  • External Length / Height: 3.5mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -55°C to +150°C
  • Resistance: 1.5kohm
  • Resistance Tolerance: ± 10%
  • Thermistor Tolerance: -10% to +10%
  • Thermistor Type: NTC
