description

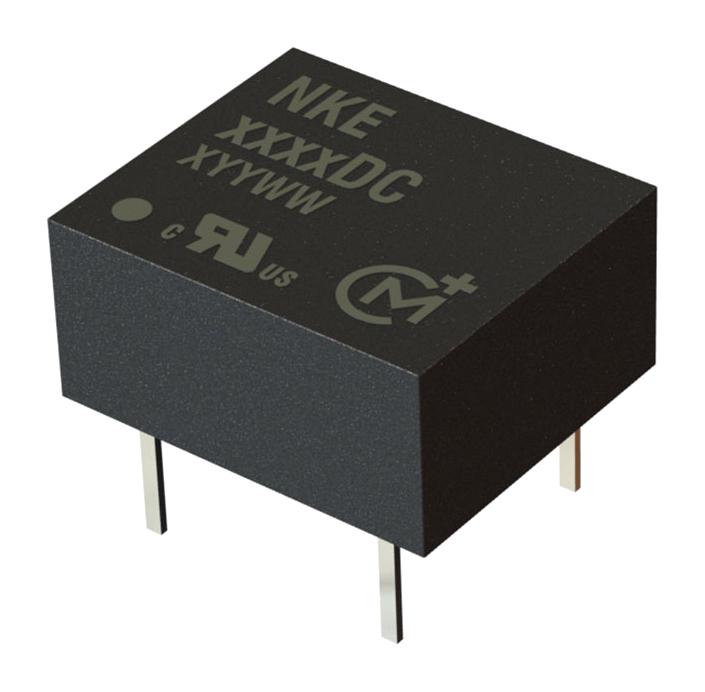

MURATA POWER SOLUTIONS - NKE0305SC - Isolated Through Hole DC/DC Converter, Miniature, ITE, 1:1, 1 W, 1 Output, 5 V, 200 mA
- No. of Outputs: 1 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 200mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: NKE Series
- Input Voltage DC Min: 2.97V
- Input Voltage DC Max: 3.63V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 6mm
- Height: 7.46mm
- Depth: 11.48mm
- SVHC: No SVHC (07-Jul-2017)
- Approval Bodies: UL Recognised
- Approvals & Standards: UL
- Efficiency: 72%
- External Depth: 6mm
- External Length / Height: 7.46mm
- External Width: 11.48mm
- Isolation Voltage: 3kV
- No. of Outputs: 1Outputs
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Power Density: 2.09W/cm³
- Power Rating: 1W
- Supply Voltage: 3.3V
