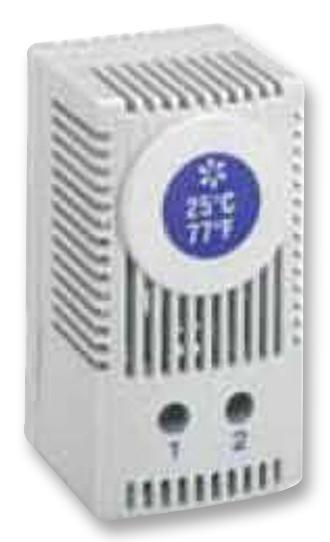

SCHNEIDER ELECTRIC - NSYCCOTH230VID - THERMOSTAT, NO, 35ºC/95ºF
- Transducer Function: -
- Thermostat Type: Programmable
- Thermostat Set Point: +5°C to +50°C
- Contact Rating: 8A at 230VAC
- Contact Operation: Normally Open, Normally Closed
- Load Type: Resistive
- Thermostat Mounting: DIN Rail
- Product Range: Climasys CC
- SVHC: No SVHC (15-Jun-2015)
- Body Colour: Grey
- Body Material: Thermoplastic
- Colour: Light Grey
- Contact Configuration: 1NO
- Contact Current Max: 10A
- Enclosure Material: Thermoplastic
- External Depth: 43mm
- External Depth - Imperial: 1.69"
- External Depth - Metric: 43mm
- External Height: 60mm
- External Height - Imperial: 2.36"
- External Height - Metric: 60mm
- External Width: 33mm
- External Width - Imperial: 1.3"
- External Width - Metric: 33mm
- Flammability Rating: UL 94-V0
- IP / NEMA Rating: IP20
- Load Power: 30W
- Material: Thermoplastic
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Operating Temperature Range: -20°C to +80°C
- Operating Voltage: 250VAC
- Operation Type: NO
- Resistive Current Rating: 10A
- Supply Voltage Max: 250VAC
