NTCASCWE3103J Thermistor, NTC, 10K, 5%, Radial Vishay

VISHAYUGS :NTCASCWE3103J Code de commande:1187100

Prix:
Prix ​​promotionnel€7,92

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1513 unité)

Documents et téléchargements

description

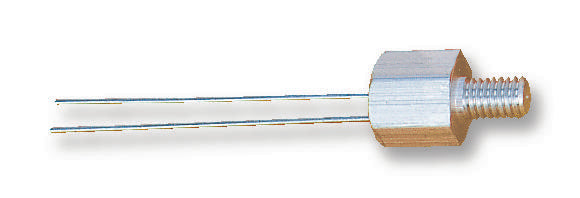

VISHAY - NTCASCWE3103J - Thermistor, NTC, 10 kohm, NTCAS Series, 3977 K, Through Hole, Radial Leaded

  • Zero Power Resistance at 25°C: 10kohm
  • Product Range: NTCAS Series
  • Thermistor Mounting: Through Hole
  • Beta Value (K): 3977K
  • Thermistor Case Style: -
  • Thermistor Terminals: Radial Leaded
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 100°C
  • Automotive Qualification Standard: -
  • Beta Value Lower Limit Temperature: 25°C
  • Body Diameter: 8mm
  • External Length / Height: 81mm
  • Lead Diameter: 0.6mm
  • Lead Length: 34mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +100°C
  • Resistance: 10kohm
  • Resistance Temperature: 25°C
  • Resistance Tolerance: ± 5%
  • Temperature Upper Limit Beta Value: 85°C
  • Thermistor Tolerance: -5% to +5%
  • Thermistor Type: NTC
  • Thread Size: 5.5
