NTCLE203E3272FB0 Thermistor, NTC, 2K7, 1%, Radial Vishay

VISHAYUGS :NTCLE203E3272FB0 Code de commande:1187038

Prix:
Prix ​​promotionnel€3,60

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1508 unité)

Documents et téléchargements

description

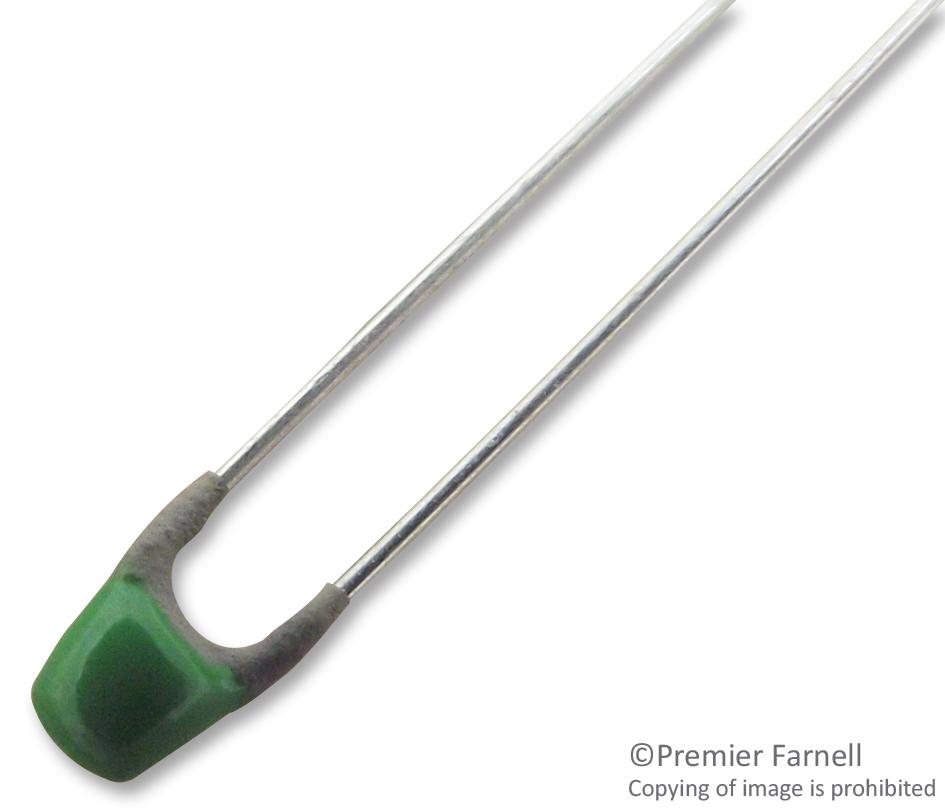

VISHAY - NTCLE203E3272FB0 - Thermistor, NTC, 2.7 kohm, NTCLE Series, 3977 K, Through Hole, Radial Leaded

  • Zero Power Resistance at 25°C: 2.7kohm
  • Product Range: NTCLE Series
  • Thermistor Mounting: Through Hole
  • Beta Value (K): 3977K
  • Thermistor Case Style: -
  • Thermistor Terminals: Radial Leaded
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Automotive Qualification Standard: -
  • Beta Value Lower Limit Temperature: 25°C
  • External Depth: 3mm
  • External Length / Height: 6mm
  • External Width: 3.6mm
  • Lead Length: 38mm
  • Lead Spacing: 2.54mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -55°C to +150°C
  • Resistance: 2.7kohm
  • Resistance Temperature: 25°C
  • Resistance Tolerance: ± 1%
  • Resistance Tolerance +: 1%
  • Resistance Tolerance -: 1%
  • Temperature Upper Limit Beta Value: 85°C
  • Thermistor Tolerance: -1% to +1%
  • Thermistor Type: NTC
