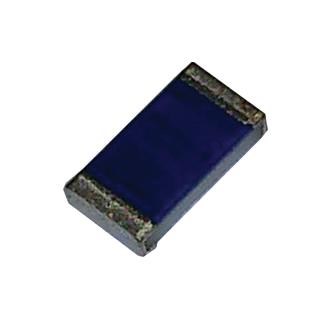

NTCS0402E3104FHT Thermistor, NTC, 0402, 1%, 100k Vishay

VISHAYUGS :NTCS0402E3104FHT Code de commande:1761144

Prix:
Prix ​​promotionnel€0,73

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (9634 unité)

description

VISHAY - NTCS0402E3104FHT - Thermistor, NTC, 100 kohm, ± 1%, -40 °C to 150 °C, NTCS Series, SMD, 0402 [1005 Metric]

  • Zero Power Resistance at 25°C: 100kohm
  • Product Range: NTCS Series
  • Thermistor Mounting: SMD
  • Beta Value (K): 3950K
  • Thermistor Case Style: 0402 [1005 Metric]
  • Thermistor Terminals: -
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 150°C
  • Automotive Qualification Standard: -
  • Beta Value Lower Limit Temperature: 25°C
  • External Depth: 0.5mm
  • External Length / Height: 0.5mm
  • External Width: 1mm
  • Operating Temperature Range: -40°C to +150°C
  • Power Dissipation Pd: 70mW
  • Reel Quantity: 10000
  • Resistance: 100kohm
  • Resistance Tolerance: ± 1%
  • Temperature Upper Limit Beta Value: 85°C
  • Thermistor Tolerance: -1% to +1%
  • Thermistor Type: NTC
