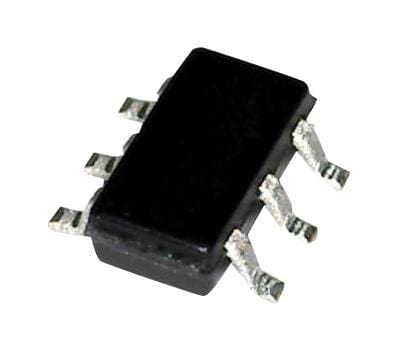

ONSEMI - NTJS4151PT1G - Power MOSFET, P Channel, 20 V, 4.2 A, 0.047 ohm, SOT-363, Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 4.2A
- Drain Source Voltage Vds: -20V
- On Resistance Rds(on): 0.047ohm
- Rds(on) Test Voltage Vgs: -4.5V
- Threshold Voltage Vgs: -400mV
- Power Dissipation Pd: 1W
- Transistor Case Style: SOT-363
- No. of Pins: 6Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Operating Temperature Min: -55°C
