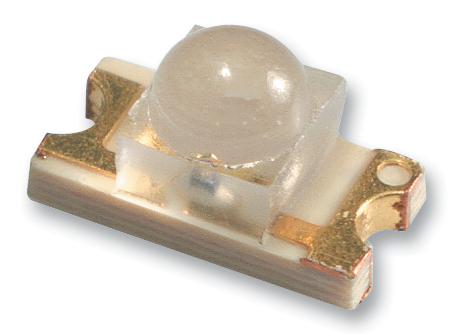

OSA OPTO LIGHT - OLS 330 EG 525 - LED, Green, SMD, 1206 (3216 Metric), 20 mA, 3.2 V, 525 nm
- LED Colour: Green
- LED Mounting: SMD
- LED Case Size: 1206 (3216 Metric)
- Forward Current If: 20mA
- Forward Voltage: 3.2V
- Wavelength Typ: 525nm
- Luminous Intensity: 1.6cd
- Viewing Angle: 40°
- Lens Shape: Dome
- Product Range: SMD OSA 330 Series
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Bulb Size: 1.5mm
- Dominant Wavelength: 525nm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 3.8V
- LED / Lamp Size: 1206
- LED Type: Standard
- Luminous Intensity Typ: 1600mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -45°C
- Operating Temperature Range: -45°C to +85°C
