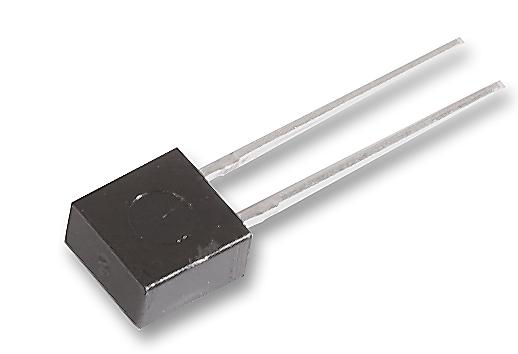

OP240B Infrared Emitter, 890 Nm, Side Looking TT Electronics / OPTEK Technology

TT ELECTRONICS / OPTEK TECHNOLOGYUGS :OP240B Code de commande:3167537

Prix:
Prix ​​promotionnel€1,58

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (890 unité)

Documents et téléchargements

description

TT ELECTRONICS / OPTEK TECHNOLOGY - OP240B - Infrared Emitter, 890 nm, 40 °, Side Looking, 500 ns, 250 ns

  • Peak Wavelength: 890nm
  • Angle of Half Intensity: 40°
  • Diode Case Style: Side Looking
  • Radiant Intensity (Ie): -
  • Rise Time: 500ns
  • Fall Time tf: 250ns
  • Forward Current If(AV): 20mA
  • Forward Voltage VF Max: 1.8V
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 100°C
  • Automotive Qualification Standard: -
  • Product Range: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • External Width: 4.57mm
  • Forward Current If: 50mA
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +100°C
  • Pitch Spacing: 2.54mm
  • Radiant Intensity Max: 1.2mW/Sr
  • Radiant Intensity Min: 0.4mW/Sr
  • Turn Off Time: 0.25µs
  • Turn On Time: 0.5µs
  • Viewing Angle: 40°
