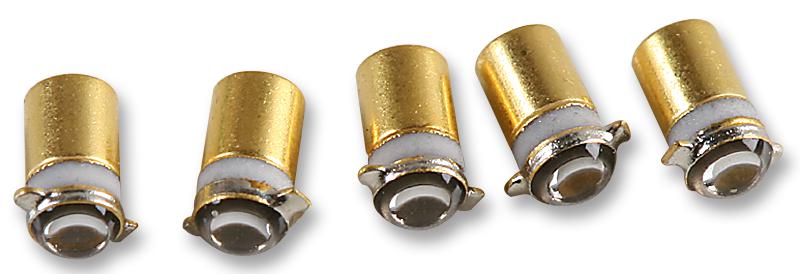

TT ELECTRONICS / OPTEK TECHNOLOGY - OP644SL - Phototransistor, 50 mW, 2 Pins, Metal Can
- Wavelength Typ: -
- Viewing Angle: -
- Power Consumption: 50mW
- No. of Pins: 2Pins
- Transistor Case Style: Metal Can
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Current Ic Typ: 22mA
- Dark Current: 100nA
- External Length / Height: 2.75mm
- Fall Time tf: 15µs
- Nom Sensitivity @ mW/cm²: 22mA @ 20mW/cm²
- Operating Temperature Max: 125°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +125°C
- Peak Spectral Response Wavelength: 890nm
- Rise Time: 15µs
- Transistor Polarity: NPN
- Transistor Type: Photo
- Voltage Vcc: 5V
