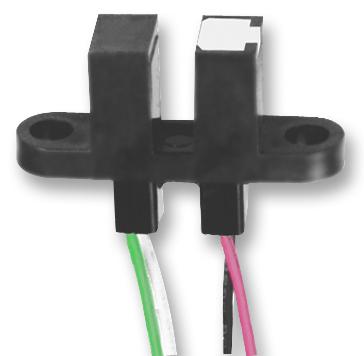

TT ELECTRONICS / OPTEK TECHNOLOGY - OPB910W55Z - Transmissive Photo Interrupter, Totem Pole, Panel / Chassis, 9.53 mm, 1.27 mm, 40 mA, 2 V
- Sensor Output: Totem Pole
- Sensor Mounting: Panel / Chassis
- Gap Width: 9.53mm
- Aperture Width: 1.27mm
- Forward Current If: 40mA
- Reverse Voltage Vr: 2V
- Forward Voltage: 1.7V
- Product Range: OPB913 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- External Depth: 6.35mm
- External Length / Height: 10.8mm
- External Width: 30.99mm
- Fall Time tf: 70ns
- Forward Voltage VF Max: 1.7V
- Gap Width: 9.5mm
- Input Current: 40mA
- No. of Channels: 1Channels
- No. of Pins: 5Pins
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +70°C
- Output Current: 100µA
- Output Voltage: 35V
- Output Voltage Max: 35V
- Propagation Time H-L: 5µs
- Propagation Time L-H: 5µs
- Reverse Leakage Current Max: 100µA
- Rise Time: 70ns
- Supply Voltage DC Max: 5.25V
- Supply Voltage DC Min: 4.75V
- Supply Voltage Range DC: 4.75V to 5.25V
