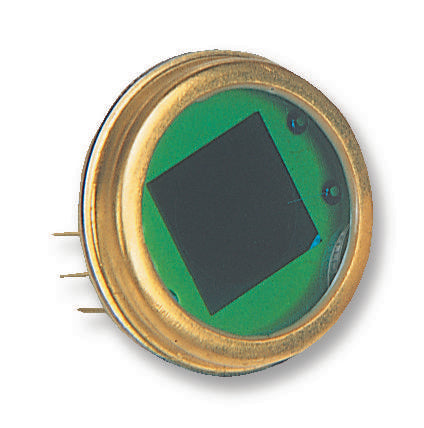

CENTRONIC - OSD100-E. - Photodiode, Eye Response, 20 nA, 630 nm, Metal Can-3
- No. of Pins: 3Pins
- Diode Case Style: Metal Can
- Wavelength of Peak Sensitivity: 630nm
- Angle of Half Sensitivity ±: -
- Dark Current: 0.02µA
- Operating Temperature Min: -25°C
- Operating Temperature Max: 75°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- Active Area: 100mm²
- Capacitance Cj: 520pF
- Diode Type: Photodiode
- NEP: 1.2x10
- Operating Temperature Range: -25°C to +75°C
- Peak Wavelength: 550nm
- Reverse Voltage Vr Max: 15V
- Rise Time: 45ns
- Sensitivity: 60nA/Lux
- Shunt Resistance: 1Mohm
- Wavelength Typ: 550nm
