OVL-5521 LED, 5mm, Mega Bright, White multicomp Pro

MULTICOMP PROUGS :OVL-5521 Code de commande:1716702

Prix:
Prix ​​promotionnel€1,13

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2837 unité)

Documents et téléchargements

description

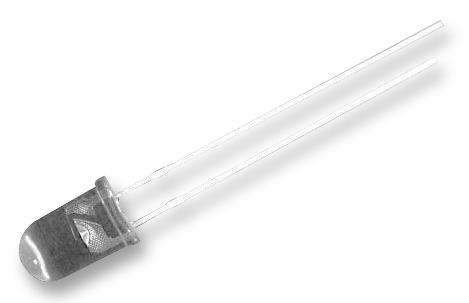

MULTICOMP PRO - OVL-5521 - LED, White, Through Hole, T-1 3/4 (5mm), 30 mA, 4 V, 18 cd

  • LED Colour: White
  • LED Mounting: Through Hole
  • Bulb Size: T-1 3/4 (5mm)
  • Forward Current If: 30mA
  • Forward Voltage: 4V
  • Luminous Intensity: 18cd
  • Viewing Angle: 15°
  • Lens Shape: Dome
  • Product Range: OVL-55 Series
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Forward Current @ Test: 20mA
  • Forward Current If Max: 30mA
  • Forward Voltage @ Test: 4V
  • Forward Voltage VF Max: 4V
  • LED / Lamp Size: 5mm / T-1 3/4
  • Luminous Intensity @ Test: 18cd
  • Luminous Intensity Min: 8500mcd
  • Luminous Intensity Typ: 18000mcd
  • Material: InGaN / Sapphire
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +85°C
  • Power @ Test: 0.1W
  • Voltage Vf Typ: 3.2V
