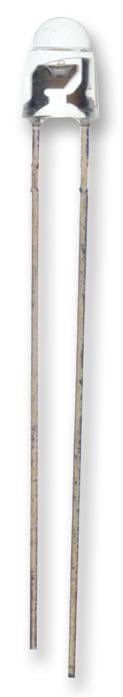

TT ELECTRONICS / OPTEK TECHNOLOGY - OVLBB4C7 - LED, Blue, Through Hole, T-1 (3mm), 20 mA, 3.4 V, 475 nm
- LED Colour: Blue
- LED Mounting: Through Hole
- LED Case Size: T-1 (3mm)
- Forward Current If: 20mA
- Forward Voltage: 3.4V
- Wavelength Typ: 475nm
- Luminous Intensity: 900mcd
- Viewing Angle: 45°
- Lens Shape: Round
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Bulb Size: T-1 (3mm)
- Dominant Wavelength: 470nm
- Dominant Wavelength Max: 475nm
- Dominant Wavelength Min: 465nm
- External Length / Height: 5.1mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 4V
- Head Diameter: 2.95mm
- LED / Lamp Size: 3mm / T-1
- LED Type: Standard
- Lead Length: 23.9mm
- Lens Diameter: 3mm
- Luminous Intensity @ If Min: 525mcd
- Luminous Intensity Typ: 900mcd
- Material: InGaN
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- PIV Max: 5V
- Peak Wavelength: 466nm
- Reverse Leakage Current Max: 50µA
- Storage Temperature Max: +100°C
- Storage Temperature Min: -40°C
- Voltage Vf Typ: 3.4V
