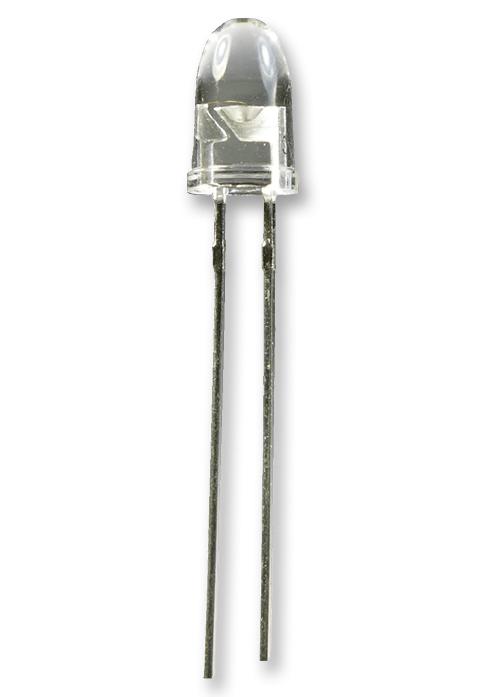

TT ELECTRONICS / OPTEK TECHNOLOGY - OVLGS0C8B9 - LED, High Intensity, Red, Through Hole, T-1 3/4 (5mm), 20 mA, 2 V, 630 nm
- LED Colour: Red
- LED Mounting: Through Hole
- LED Case Size: T-1 3/4 (5mm)
- Forward Current If: 20mA
- Forward Voltage: 2V
- Wavelength Typ: 630nm
- Luminous Intensity: 8.55cd
- Viewing Angle: 6°
- Lens Shape: Round
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Bulb Size: T-1 3/4 (5mm)
- Dominant Wavelength: 623nm
- Dominant Wavelength Max: 630nm
- Dominant Wavelength Min: 620nm
- Dominant Wavelength Typ: 623nm
- External Length / Height: 8.6mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.4V
- LED / Lamp Size: 5mm / T-1 3/4
- LED Type: Standard
- Lead Length: 25.4mm
- Lead Type Stand-Offs: No stand-offs
- Lens Diameter: 5mm
- Luminous Intensity @ If Min: 6105mcd
- Luminous Intensity Typ: 8550mcd
- Material: AIInGaP
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- PIV Max: 5V
- Reverse Leakage Current Max: 50µA
- Storage Temperature Max: 100°C
- Storage Temperature Min: -40°C
- Voltage Vf Typ: 2V
