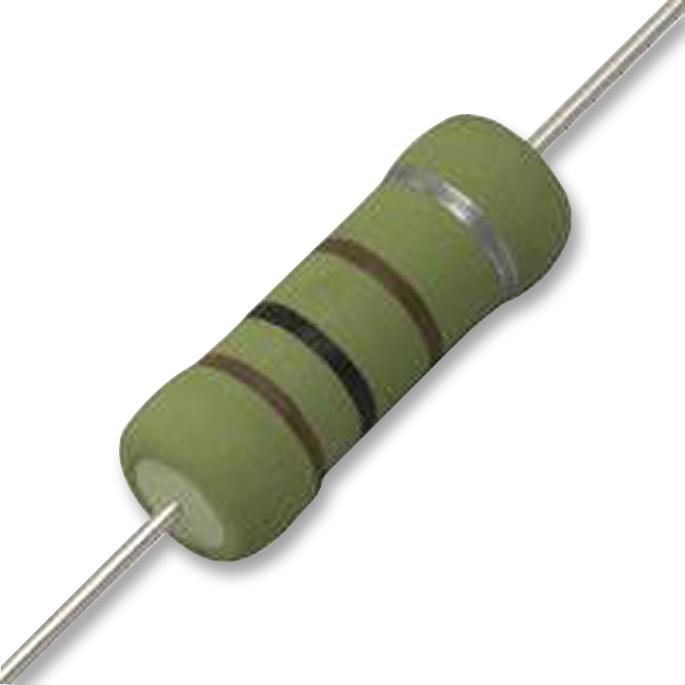

OHMITE - OY473KE - Through Hole Resistor, 47 kohm, OY, 2 W, ± 10%, Axial Leaded, 400 V
- Resistance: 47kohm
- Product Range: OY Series
- Power Rating: 2W
- Resistance Tolerance: ± 10%
- Resistor Case Style: Axial Leaded
- Voltage Rating: 400V
- Resistor Element Material: Ceramic
- Temperature Coefficient: -1300, ± 300ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Body Diameter: 7mm
- Dielectric Strength VDC: 700V
- External Length / Height: 19mm
- Lead Diameter: 0.8mm
- Lead Length: 38mm
- No. of Pins: 2Pins
- Operating Temperature Max: 220°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +220°C
- Overload Voltage: 800V
- Resistor Mounting: Through Hole
- Temperature Coeff. +: 300ppm/°C
- Temperature Coeff. -: 300ppm/°C
- Tolerance +: 10%
- Tolerance -: 10%
- Voltage Rating V DC: 400V
