description

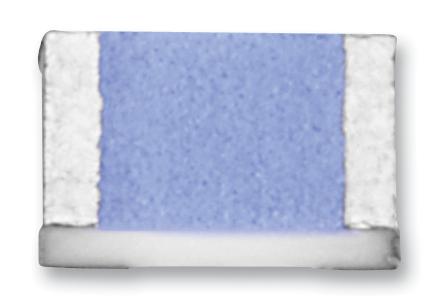

VISHAY - P1206Y1003BNT - SMD Chip Resistor, 100 kohm, ± 0.1%, 333.3 mW, 1206 [3216 Metric], Thin Film, Sulfur Resistant
- Resistor Case Style: 1206 [3216 Metric]
- Resistance: 100kohm
- Product Range: P Series
- Voltage Rating: 200V
- Resistor Element Material: Thin Film
- Power Rating: 330mW
- Resistance Tolerance: ± 0.1%
- Temperature Coefficient: ± 10ppm/°C
- Automotive Qualification Standard: -
- External Depth: 1.6mm
- External Length / Height: 0.5mm
- External Width: 3.06mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Resistor Mounting: Surface Mount Device
