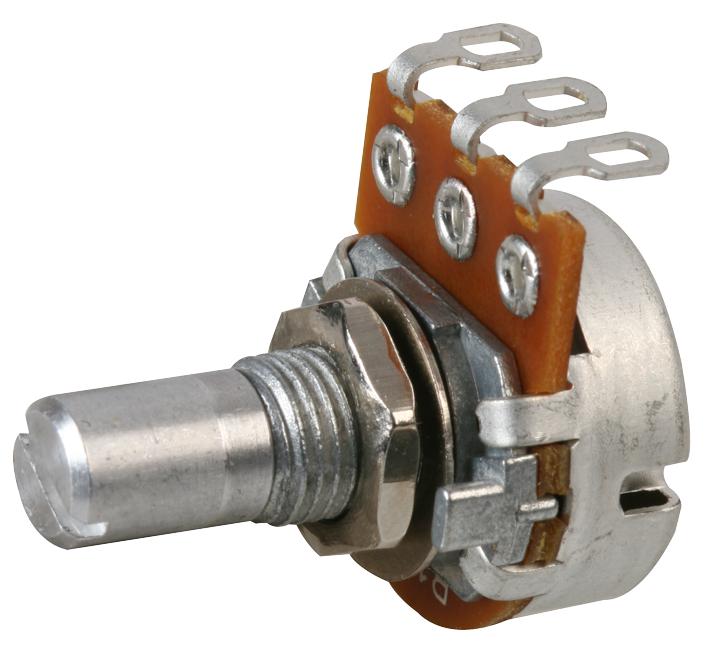

P160KNP-0EC15A250K Panel Pot, 250K Log 16mm TT Electronics / Bi Technologies

TT ELECTRONICS / BI TECHNOLOGIESUGS :P160KNP-0EC15A250K Code de commande:1684819

Prix:
Prix ​​promotionnel€7,81

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (851 unité)

Documents et téléchargements

description

TT ELECTRONICS / BI TECHNOLOGIES - P160KNP-0EC15A250K - Rotary Potentiometer, Conductive Plastic, 250 kohm, 1 Turns, Log (Audio), 100 mW, ± 20%, P160

  • Track Resistance: 250kohm
  • No. of Turns: 1Turns
  • Track Taper: Log (Audio)
  • Power Rating: 100mW
  • Resistance Tolerance: ± 20%
  • Product Range: P160 Series
  • Potentiometer Mounting: Bushing
  • Shaft Diameter: 6mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 15mm
  • SVHC: No SVHC (20-Jun-2016)
  • Body Diameter: 16mm
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Operating Temperature Range: -20°C to +70°C
  • Resistor Element Material: Conductive Plastic
  • Shaft Type: Round Shaft
  • Termination Type: Solder
  • Voltage Rating: 200V
