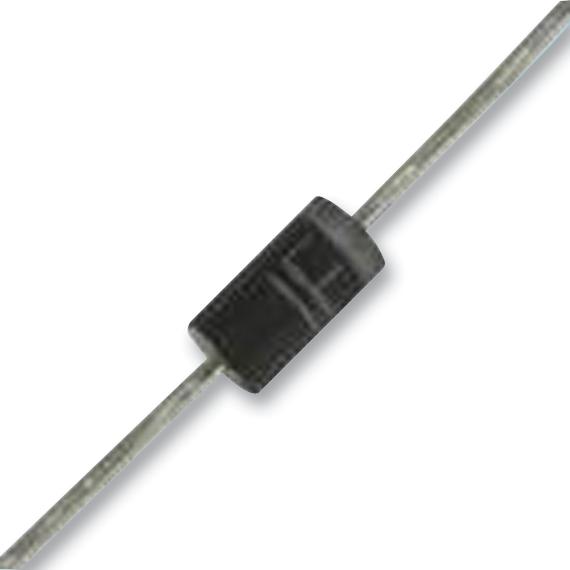

STMICROELECTRONICS - P6KE15A - TVS Diode, P6KE1, Unidirectional, 12.8 V, 21.2 V, DO-15, 2 Pins
- Product Range: P6KE1 Series
- TVS Polarity: Unidirectional
- Reverse Stand-Off Voltage Vrwm: 12.8V
- Clamping Voltage Vc Max: 21.2V
- Diode Case Style: DO-15
- No. of Pins: 2Pins
- Breakdown Voltage Min: 14.3V
- Breakdown Voltage Max: 15.8V
- Peak Pulse Power Dissipation: 600W
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Alternate Case Style: DO-204AC
- Body Diameter: 3.56mm
- Breakdown Voltage: 15V
- Breakdown Voltage Range: 14.3V to 15.8V
- Breakover Voltage Min: 14.3V
- Capacitance Cd @ Vr Typ: 1900pF
- Clamping Voltage @ 8/20µs Max: 27.2V
- Diode Type: Unidirectional TVS
- External Length / Height: 7.62mm
- Full Power Rating Temperature: 75°C
- Peak Pulse Current Ippm: 147A
- Power Dissipation Pd: 5W
- Power Dissipation Ptot Max: 5W
- Power Rating: 600W
- Reverse Leakage Current Max: 5µA
- Stand-off Voltage: 12.8V
- Test Current: 1mA
- Uni / Bi Directional Polarity: Unidirectional
