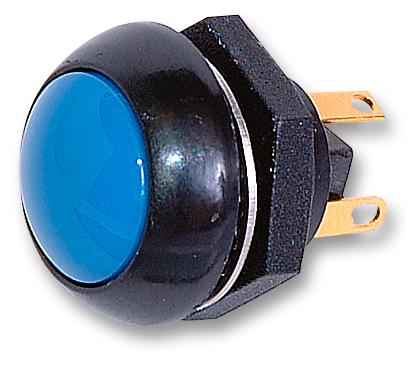

OTTO CONTROLS - P9113126 - Industrial Pushbutton Switch, P9, 12 mm, SPDT-DB, Momentary, Flush, Blue
- Switch Operation: Momentary
- Contact Configuration: SPDT-DB
- Contact Voltage AC Nom: 115V
- Contact Voltage DC Nom: 28V
- Contact Current Max: 5A
- Switch Terminals: Solder Lug
- Product Range: P9 Series
- SVHC: No SVHC (20-Jun-2016)
- Actuation Type: Dome
- Actuator / Cap Colour: Blue
- Behind Panel Depth: 14mm
- Colour: Black
- Contact Current @ Contact Voltage AC Max: 5A
- Contact Current @ Contact Voltage AC Min: 2.5A
- Contact Current AC Max: 4A
- Contact Current DC Max: 4A
- Contact Current Rating: 5A
- Contact Voltage VAC: 115V
- Contact Voltage VDC: 28V
- External Diameter: 17.5mm
- External Length / Height: 19.35mm
- IP / NEMA Rating: IP64
- IP Rating: IP64
- Illumination Colour: Non-illuminated
- No. of Mechanical Operations: 1000000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -55°C
- Panel Cutout Diameter: 12mm
- Panel Cutout Width: 11.3mm
- Panel Cutout length: 11.9mm
- Pushbutton Actuator Style: Flush
- Pushbutton Switch Type: Industrial
- Single Flat Panel Cut-out Diameter: 11.9mm
