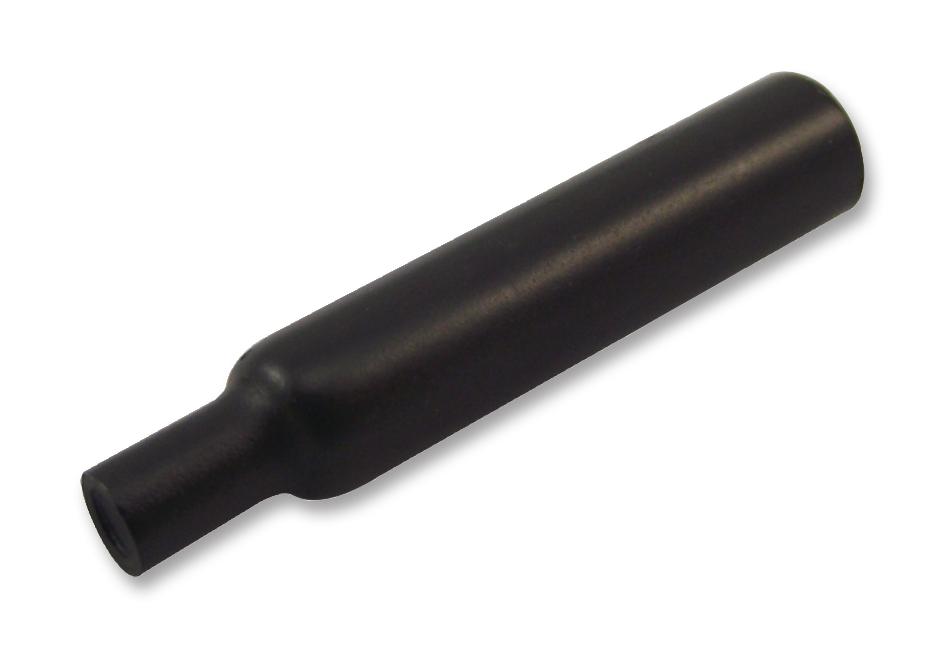

RAYCHEM - TE CONNECTIVITY - PD 1/8-0 - Heat Shrink Boot, PD-Caps Encapsulant Lined, End Cap, 0.125 ", 3.2 mm, Black, 0.87 ", 22 mm
- Boot Configuration: End Cap
- I.D. Supplied - Imperial: 0.125"
- I.D. Supplied - Metric: 3.2mm
- Shrink Tubing / Boot Colour: Black
- Total Length - Imperial: 0.87"
- Total Length - Metric: 22mm
- I.D. Recovered Max - Imperial: 0.022"
- I.D. Recovered Max - Metric: 0.58mm
- Shrink Tubing / Boot Material: PO (Polyolefin)
- Shrink Ratio: 3
- Product Range: -
- Accessory Type: Heat Shrink End Cap
- Body Material: PO (Polyolefin)
- Cable Diameter Max: 3.2mm
- Cable Diameter Min: 0.58mm
- Colour: Black
- External Length / Height: 26mm
- Fully Shrunk Diameter: 0.58mm
- I.D. Max Recovered: 0.58mm
- I.D. Supplied: 3.2mm
- Internal Diameter: 3.2mm
- Length - Imperial: 0.87"
- Length - Metric: 22mm
- Material: PO (Polyolefin)
- Operating Temperature Max: 110°C
- Operating Temperature Min: -55°C
- Shrink Temperature: 125°C
- Shrink Type: Heat
- Unshrunk Diameter: 3.2mm
- Wall Thickness: 1.27mm
