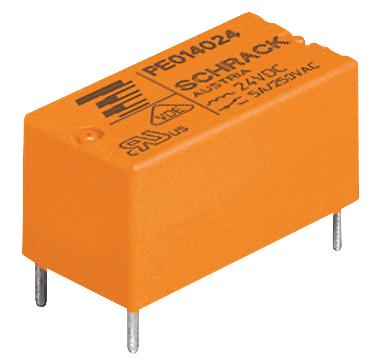

PE014F12 Relay, SPDT, 250VAC, 5A Te Connectivity

TE CONNECTIVITYUGS :3-1415390-1 Code de commande:9913459

Prix:
Prix ​​promotionnel€11,10

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (22 unité)

Documents et téléchargements

description

TE CONNECTIVITY - 3-1415390-1 - General Purpose Relay, PE bistable Series, Power, Latching Single Coil, SPDT, 12 VDC, 5 A

  • Contact Configuration: SPDT
  • Coil Voltage: 12VDC
  • Contact Current: 5A
  • Product Range: PE bistable Series
  • Relay Mounting: Through Hole
  • Coil Type: Latching Single Coil
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 650ohm
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: VDE
  • Approval Category: UL Recognised
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 5A
  • Contact Current Max: 5A
  • Contact Voltage AC Max: 240V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • Current Rating: 5A
  • DC Coil Power: 200mW
  • Dielectric Voltage Coil to Contact: 4000VAC
  • Dielectric Voltage Contact to Contact: 1000VAC
  • External Depth: 10mm
  • External Height: 10mm
  • External Length / Height: 10mm
  • External Width: 20mm
  • Must Actuate Voltage: 3.75VDC
  • No. of Pins: 5Pins
  • Nom Operating Power: 222VA
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Relay Type: Power
