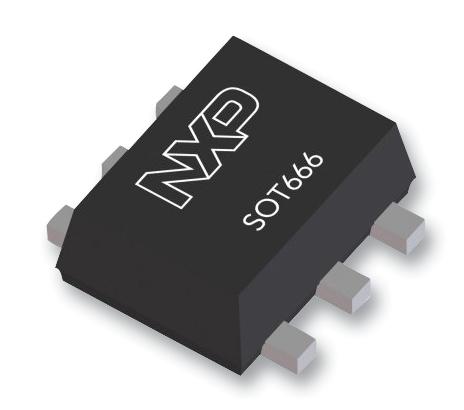

PEMD9,115 Trans NPN/PNP 50V 0.1A SOT666 NEXPERIA

NEXPERIAUGS :PEMD9,115 Code de commande:1758015

Prix:
Prix ​​promotionnel€0,68

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (6175 unité)

Documents et téléchargements

description

NEXPERIA - PEMD9,115 - Bipolar Pre-Biased / Digital Transistor, BRT, NPN and PNP Complement, 50 V, 100 mA, 10 kohm

  • Digital Transistor Polarity: NPN and PNP Complement
  • Collector Emitter Voltage V(br)ceo: 50V
  • Continuous Collector Current Ic: 100mA
  • Base Input Resistor R1: 10kohm
  • Base-Emitter Resistor R2: 47kohm
  • Resistor Ratio, R1 / R2: -
  • RF Transistor Case: SOT-666
  • No. of Pins: 6 Pin
  • Product Range: PEMD9 Series
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jan-2018)
  • Collector Emitter Saturation Voltage Vce(on): 100mV
  • Current Ic Continuous a Max: 5mA
  • DC Collector Current: 100mA
  • DC Current Gain hFE: 100hFE
  • Hfe Min: 100
  • No. of Pins: 6Pins
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Power Dissipation Pd: 300mW
  • Termination Type: Surface Mount Device
  • Transistor Case Style: SOT-666
  • Transistor Polarity: NPN, PNP
  • Transistor Type: General Purpose
